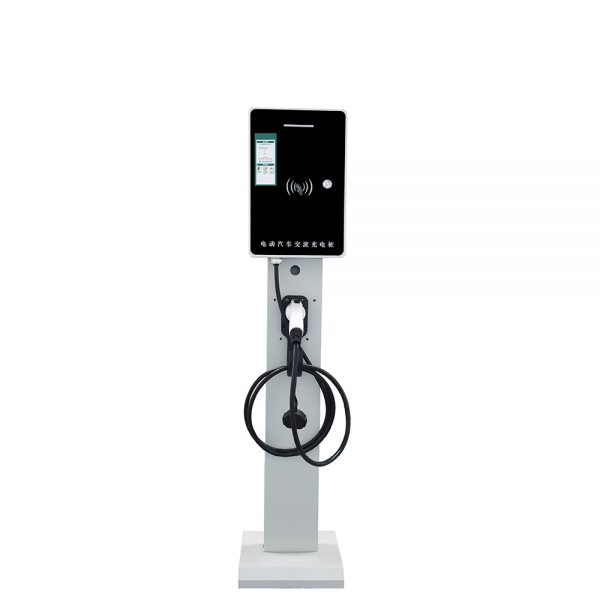

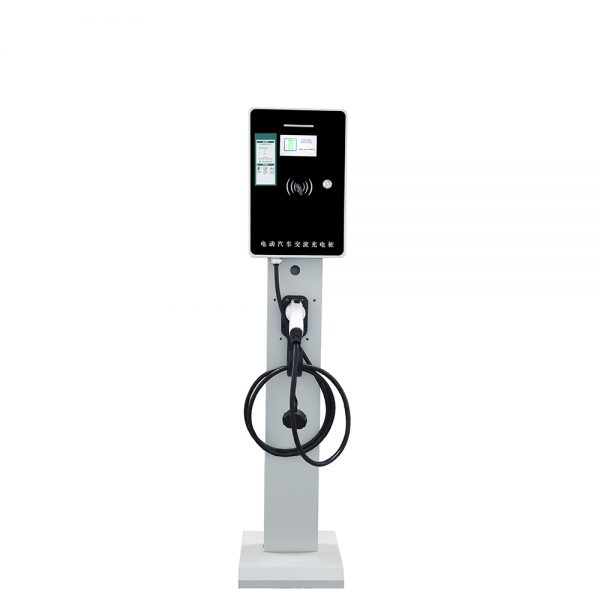

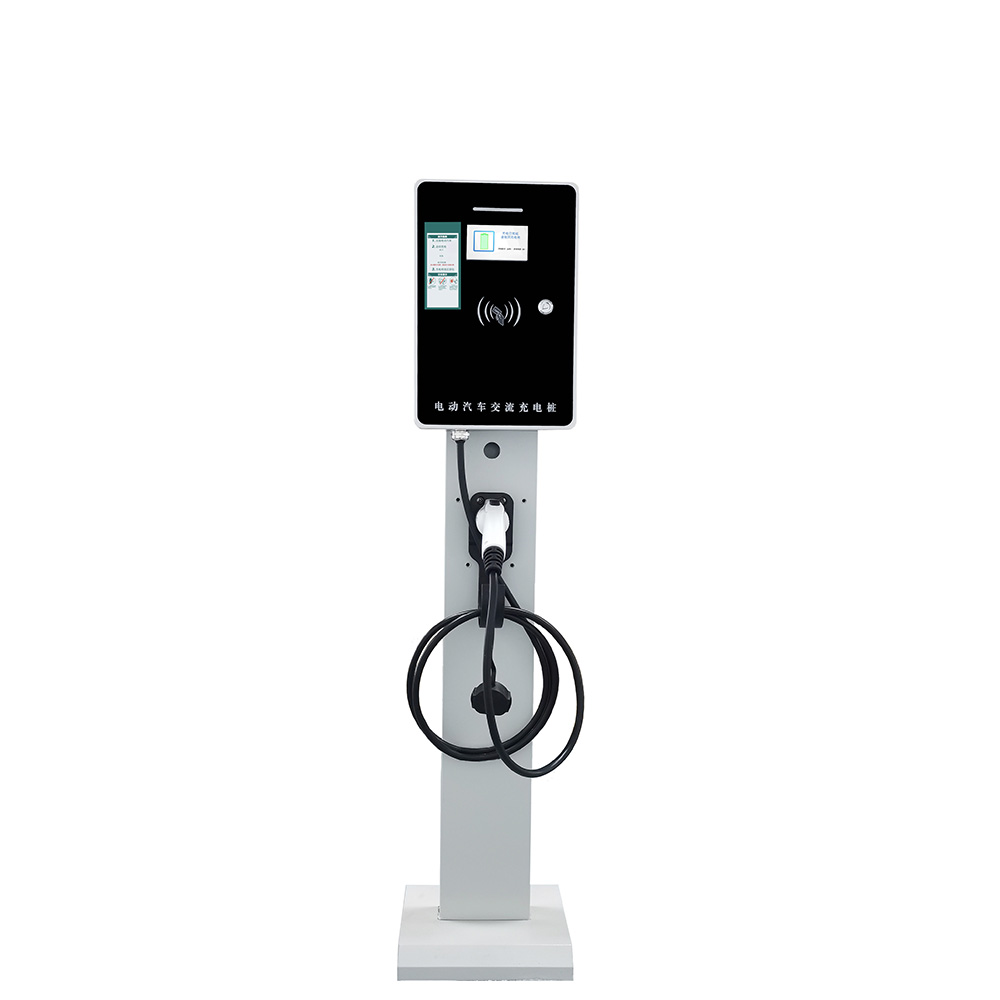

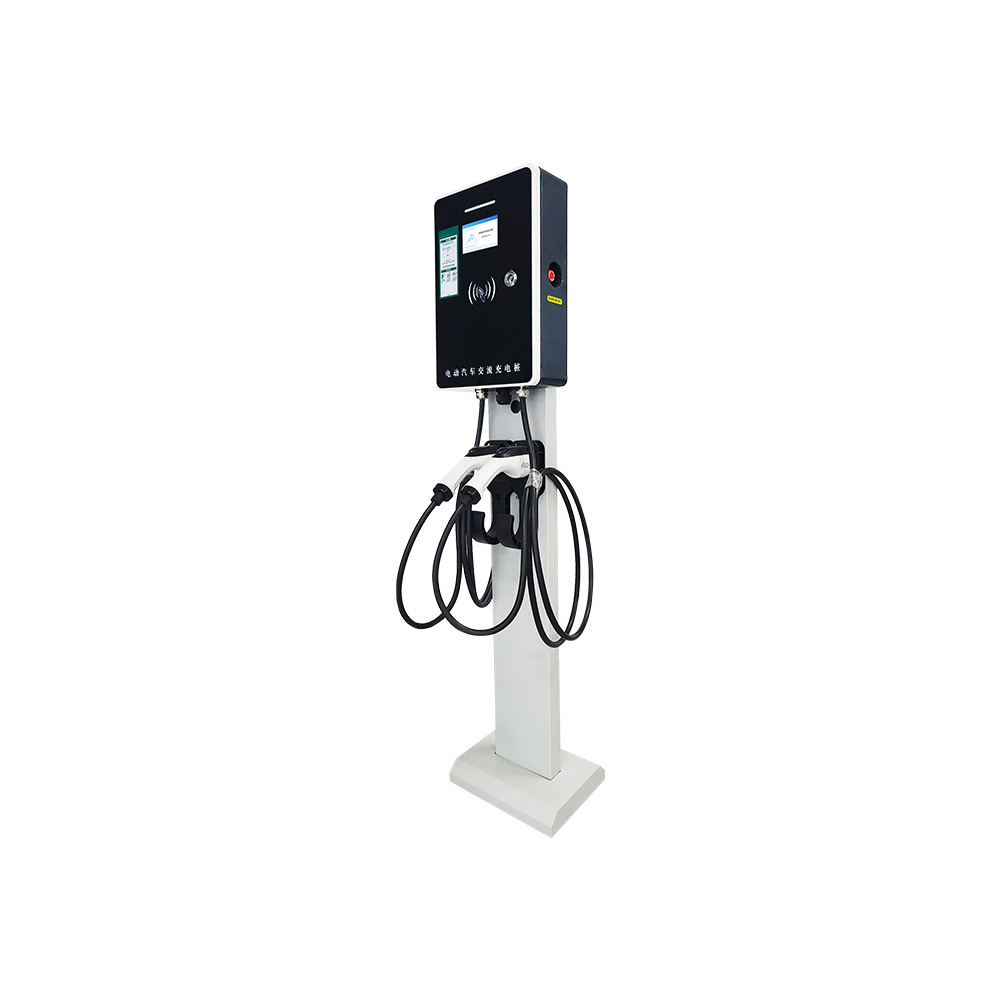

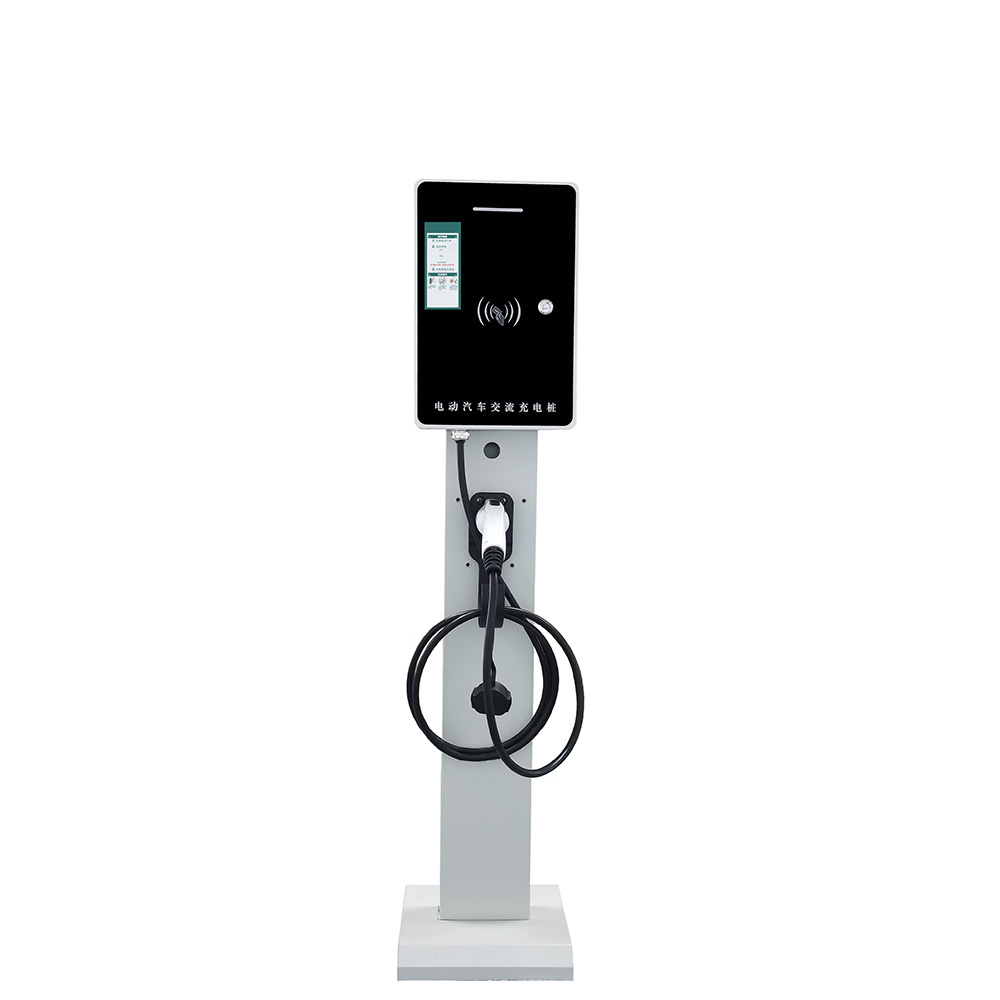

7KW AC Dual Port (wall-mounted and floor-mounted) Charging Post

Ac charging pile is a device used to charge electric vehicles, which can transfer AC power to the battery of the electric vehicle for charging. Ac charging piles are generally used in private charging places such as homes and offices, as well as public places such as urban roads.
The charging interface of AC charging pile is generally IEC 62196 Type 2 interface of international standard or GB/T 20234.2
interface of national standard.
The cost of AC charging pile is relatively low, the scope of application is relatively wide, so in the popularity of electric vehicles, AC charging pile plays an important role, can provide users with convenient and fast charging services.

Product Description
This charging post adopts column/wall mounting design, stable frame, convenient installation and construction, and friendly human-machine interface is convenient for users to operate. Modularized design is convenient for long-term maintenance, it is a high-efficiency AC charging equipment to provide power supply for new energy vehicles with on-board AC chargers.

Product Specification

Attention:1, Standards; Matching
2, The product size is subject to the actual contract.

7KW AC Double-port (wall-mounted and floor-mounted) charging piles
Equipment Models		BHRCDZ-B-16A-3.5KW-2
Technical parameters
AC input	Voltagerange(V)	220±15%
AC input	Frequency range(Hz)	45~66
AC output	Voltage range(V)	220
	Output Power(KW)	3.5*2
	Maximum current(A)	16*2
	Charging interface	2
Configure Protection Information	Operation Instruction	Power,Charge,Fault
	Man-machine display	No/4.3-inch display
	Charging operation	Swipe the card or scan the code
	Metering mode	Hourly rate
	Communication	Ethernet (Standard Communlation Protocol)
	Heat dissipation control	Natural Cooling
	Protection level	IP65
	Leakage protection(mA)	30
Equipment Other information	Reliability(MTBF)	50000
	Size (WDH)mm	2701101365(Landing)
	Size (WDH)mm	270110400(Wall mounted)
	nstallation mode	Wal mounted type Landing type
	Routing mode	Up (down) into line
WorkingEnvironment	Altitude(m)	≤2000
	Operating temperature(℃)	-20~50
	Storage temperature(℃)	-40~70
	Average relative humidity	5%~95%
Optional	O 4GWireless Communication O Charging gun 5m

Product Features
1, charging mode: fixed time, fixed power, fixed amount, full of self-stopping.
2、Support prepayment, code scanning and card billing.
3、Using 4.3-inch color display, easy to operate.
4、Support background management.
5、Support single and double gun function.
6、Support multiple models charging protocol.
Applicable Scenes
Family use, residential district, commercial place, industrial park, enterprises and institutions, etc.
