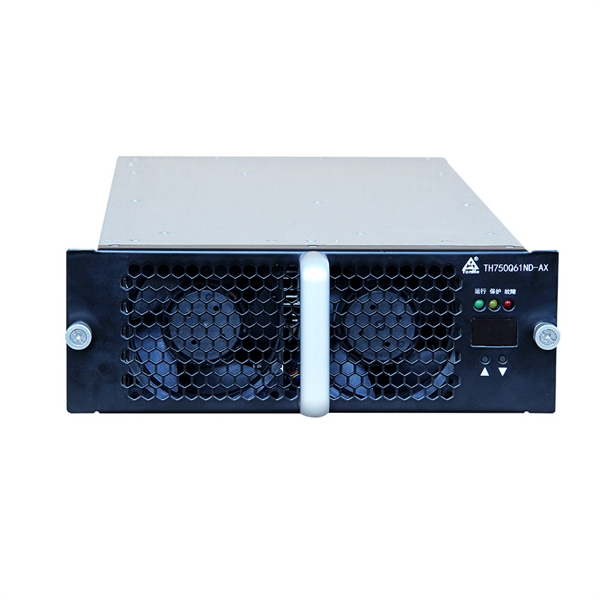

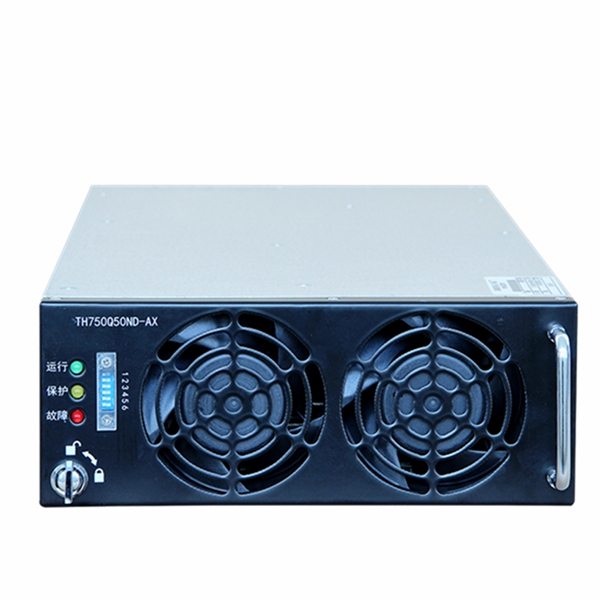

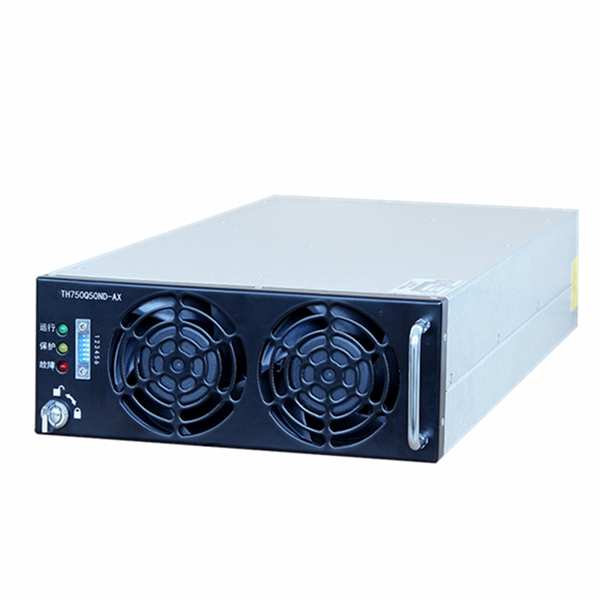

High Efficiency EV Charging Module Power Module for Fast DC Charger Station
Introducing the BEIHAI High Efficiency EV Charging Power Modules, available in 30kW, 40kW, and 50kW configurations, specifically designed to power 120kW and 180kW fast DC charging stations. These state-of-the-art power modules are engineered to deliver exceptional performance and energy efficiency, making them ideal for high-demand environments where fast and reliable EV charging is essential. Whether deployed in urban charging hubs or along busy highways, the BEIHAI Power modules ensure electric vehicles are charged quickly, reducing downtime and supporting the growing demand for efficient EV infrastructure. With advanced features that promote energy conservation, seamless integration, and superior durability, these modules are at the forefront of innovation in the electric vehicle charging industry, designed to meet the needs of today’s high-speed, high-volume charging stations.
EV Charger Module Power Module Details
| 30KW 40KW 50KW DC Charging Module | ||
| Model No. | BH-REG1K0100G | |
| AC Input | Input Rating | Rated voltage 380Vac, three phase (no center line), operating range 274-487Vac |
| AC Input Connection | 3L + PE | |
| Input Frequency | 50±5Hz | |
| Input Power Factor | ≥0.99 | |
| Input Overvoltage Protection | 490±10Vac | |
| Input Undervoltage Protection | 270±10Vac | |
| DC Output | Rated Output Power | 40kW |
| Output Voltage Range | 50-1000Vdc | |
| Output Current Range | 0.5-67A | |
| Output Constant Power Range | When output voltage is 300-1000Vdc, constant 30kW will output | |
| Peak Efficiency | ≥ 96% | |
| Soft Start Time | 3-8s | |
| Short Circuit Protection | Self-rollback protection | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| THD | ≤5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing Imbalance | ≤±5% | |
| Operation Environment |
Operating Temperature (°C) | -40˚C ~ +75˚C, derating from 55˚C |
| Humidity (%) | ≤95% RH, non-condensing | |
| Altitude (m) | ≤2000m, derating above 2000m | |
| Cooling method | Fan cooling | |
| Mechanical | Standby Power Consumption | <10W |
| Communication Protocol | CAN | |
| Address Setting | Digital screen display, keys operation | |
| Module Dimension | 437.5*300*84mm (L*W*H) | |
| Weight (kg) | ≤ 15Kg | |
| Protection | Input Protection | OVP, OCP, OPP, OTP, UVP, Surge protection |
| Output Protection | SCP, OVP, OCP, OTP, UVP | |
| Electrical Insulation | Insulated DC output and AC input | |
| MTBF | 500 000 hours | |
| Regulation | Certificate | UL2202, IEC61851-1, IEC61851-23, IEC61851-21-2 Class B |
| Safety | CE, TUV | |
EV Charger Module Power Module features
1,The charger module BH-REG1K0100G is the inner power module for DC charging stations (piles), and convert AC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as 200VDC-500VDC/300VDC-750VDC/150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.
2,The charger module BH-REG1K0100G is equipped with a POST (power on self-test) function, AC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.
3,BeiHai Power Charging Module BH-REG1K0100G has prominent advantages in the two major industries of ultra-high full-load operating temperature and ultra-wide constant power range. At the same time, high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption and good EMC performance are also the main characteristics of the ev charging module.
4,Standard configuration of CAN/RS485 communication interface, allows easy data transferring with external devices. and Low DC ripple causes minimum effects on the battery lifespan.BeiHai EV charger module uses DSP (digital signal processing) control technology, and is fully numerically controlled from input to output.
Applications
DC charger for EV with modular design , easily maintenance , cost efficiency , high power density and high quality
