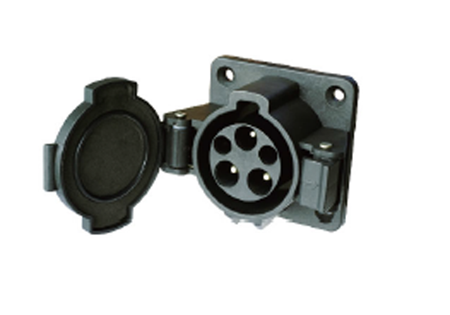

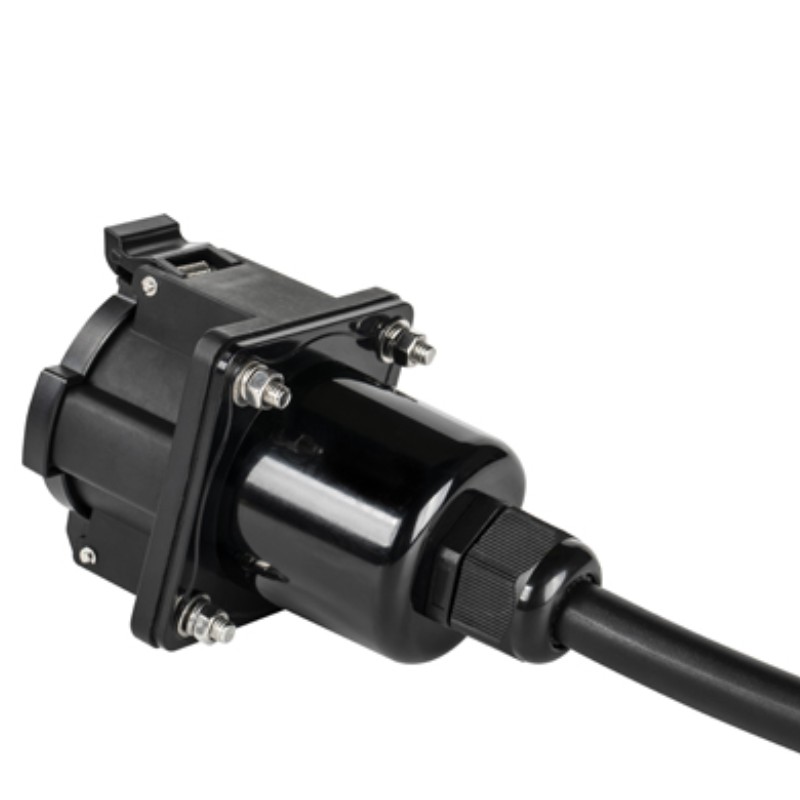

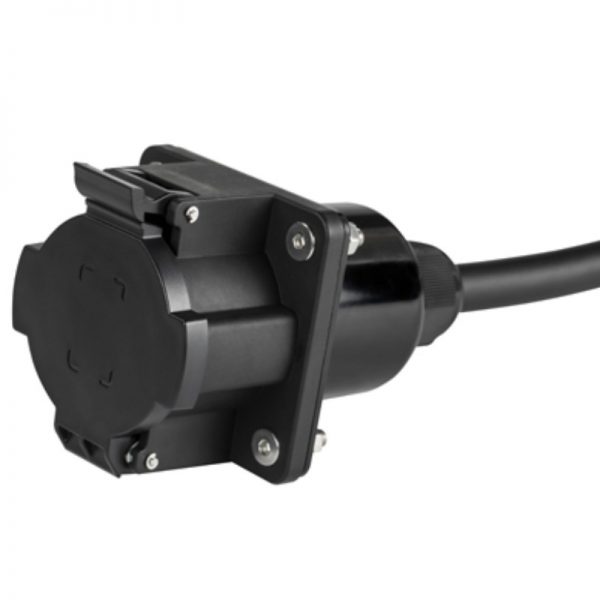

Type 2 AC EV Charger Socket (IEC 62196-2)
The 3-Phase 16A/32A Type 2 Inlet Male EV Charger Socket is an efficient and durable charging solution designed for AC EV charging stations. Offering both 16A and 32A power options, this socket supports 3-phase charging, delivering faster and more reliable power to electric vehicles. Compatible with the widely adopted Type 2 inlet (IEC 62196-2), it works seamlessly with most electric vehicle models. Built with high-quality materials, the socket is weather-resistant and ideal for both indoor and outdoor installations, ensuring long-term durability and safe charging. The 32A option provides up to 22kW of power, significantly reducing charging times. Whether for residential, commercial, or public charging stations, this socket provides a secure, efficient, and sustainable charging experience.
EV Charger Socket Details
| Charger Socket Features | Meet 62196-2 IEC 2010 SHEET 2-IIf standard |
| Nice appearance，with protection cover,support front installation | |
| Safety pins insulated head design to prevent accidental diirecrt contact with staff | |
| Excellent protection performance,protection grade IP44(working condition) | |
| Mechanical properties | Mechanical life : no-load plug in/pull out＞5000 times |
| Coupled insertion force:>45N<80N | |
| Electrical Performance | Rated current：16A/32A |
| Operation voltage： 250V/415V | |
| Insulation resistance：＞1000MΩ（DC500V） | |
| Terminal temperature rise：＜50K | |
| Withstand Voltage：2000V | |
| Contact Resistance： 0.5mΩ Max | |
| Applied Materials | Case Material: Thermoplastic,flame retardant grade UL94 V-0 |
| Pin：Copper alloy,silver + thermoplastic on the top | |
| Environmental performance | Operating temperature: -30°C~+50°C |
Model selection and the standard wiring
| Charger Socket Model | Rated current | Cable specigication |
| BH-DSIEC2f-EV16S | 16A Single phase | 3 X 2.5mm²+ 2 X 0.75mm² |
| 16A Three phase | 5 X 2.5mm²+ 2 X 0.75mm² | |
| BH-DSIEC2f-EV32S | 32A Single phase | 3 X 6mm²+ 2 X 0.75mm² |
| 32A Three phase | 5 X 6mm²+ 2 X 0.75mm² |
AC Charger Socket Key Features:
3-Phase Charging: Supports 3-phase power input, ensuring faster and more efficient charging compared to single-phase options. Available in both 16A and 32A power options to accommodate various charging needs.
Type 2 Inlet: Equipped with the Type 2 inlet (IEC 62196-2 standard), the most common and widely adopted connector type for EVs in Europe, ensuring compatibility with a broad range of electric vehicles.
Durable and Safe: Built with high-quality, weather-resistant materials to ensure long-term use in outdoor environments. The socket features robust safety mechanisms, including overload protection and overcurrent protection, to ensure secure charging at all times.
Fast Charging: Designed for quick and efficient charging, the 32A option allows for up to 22kW of power delivery, reducing overall charging time and enhancing convenience for users.
User-Friendly Design: The male EV charger socket is easy to install and compatible with a wide range of AC charging stations, making it a flexible choice for both residential and commercial use.
Sustainable and Reliable: Helps promote green energy and sustainable transportation, ensuring that electric vehicle owners can charge their cars quickly and safely.
